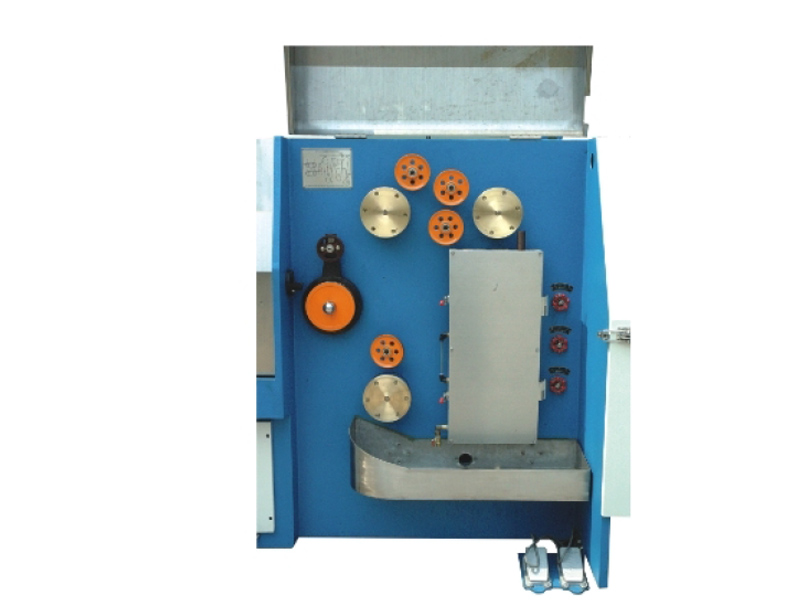

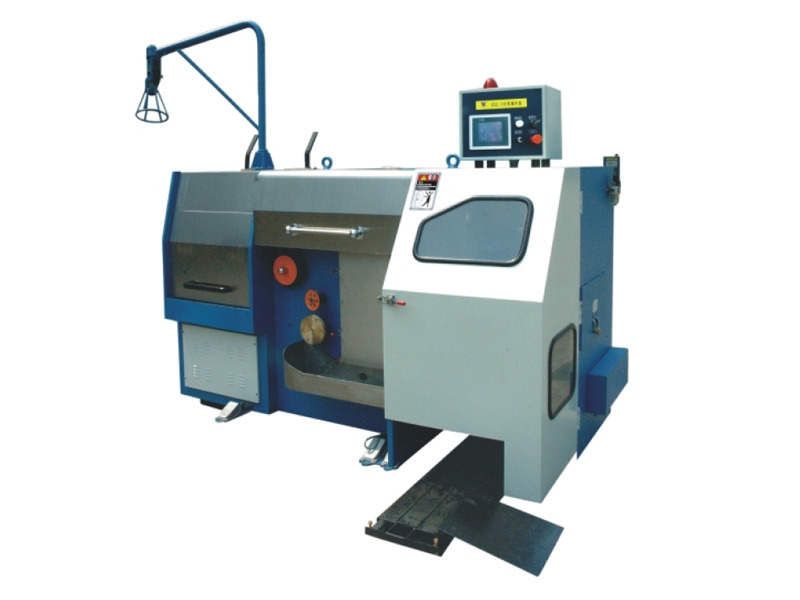

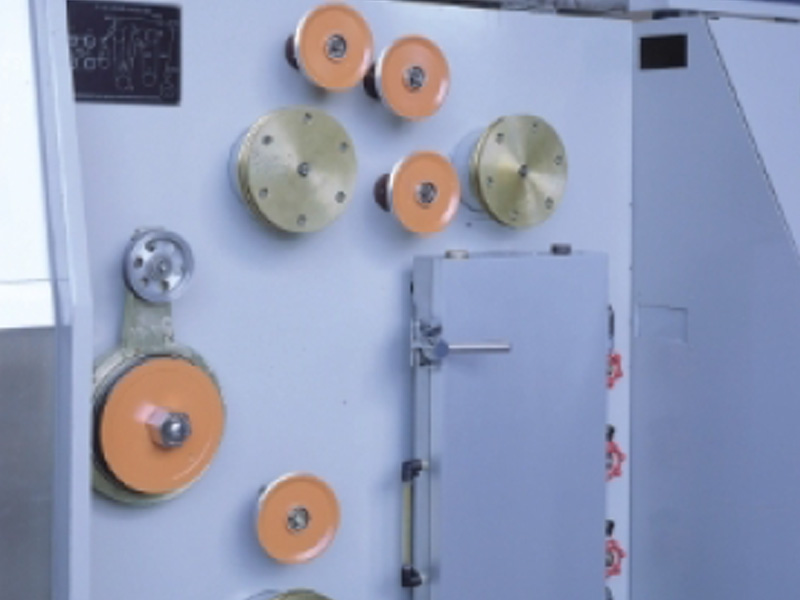

Fine Wire Drawing Machine With Continuous Annealer-B

Parameters

Production Speed

Wire diameter [mm]	Line speed [m/min]		Elongation
Wire diameter [mm]	TY(hard wire)	TR(annealed wire)	Elongation
0.10	1500	1000	15-20%
0.15	2000	1300	15-20%
0.20	2000	1500	20-25%
0.32	1500	1200	20-25%
0.40	1200	750	20-25%
0.45	1000	500	20-25%

Technical Specification

Description	Specification
Description	BT22-2	BT24-2	BT18-2
Inlet diameter [mm]	Max1.2	Max1.2	Max1.6
Outlet diameter [mm]	0.1-0.4	0.1-0.4	0.2-0.45
Mechanical speed [m/min]	Max.2400	Max.2400	Max.2000
Cone diameter [mm]	Max.190	Max.190	Max.190
Capstan diameter [mm]	150	150	200
Number. of dies	Max.22	Max.24	Max.18
Mechanical elongation	Last die:15%; Others:17.6%	Last die:8%; Others:13%	Last die:15%; Others:17.6%
Drawing motor power [kw]	15	15	15
Winding motor power [kw]	3	3	3
Steam generator power [kw]	6	6	6
DC current for annealing [A]	Max.240	Max.240	Max.240
DC volt for annealing [V]	0-50	0-50	0-50
Standard spool [mm]	PND400;PND300	PND400;PND300	PND400;PND300
Spool capacity [kg]	Max.100	Max.100	Max.100
Power supply [V]	-3*380(-5%±10%)	-3*380(-5%+10%)	-3*380(-5%+10%)
Frequency [Hz]	50(±2%)	50(±2%)	50(±2%)
Machine dimensions [mm]	280015502100	280015502100	280015502100
Net weight [kg]	4000	4000	4000
Traverse method	Ball screw traversing
Cooling method	Spray
Brake method	Pneumatic

Note:
1.The spooler can be designed according to the dimensioin of spool provided by customer.
2.When use pneumatic brake,compressed air shall be clean and no grease, working pressure 0.6-0.7Mpa,inflation value ±0.02Mpa,dew point- 25°C,flow value 50L/min.
